Description

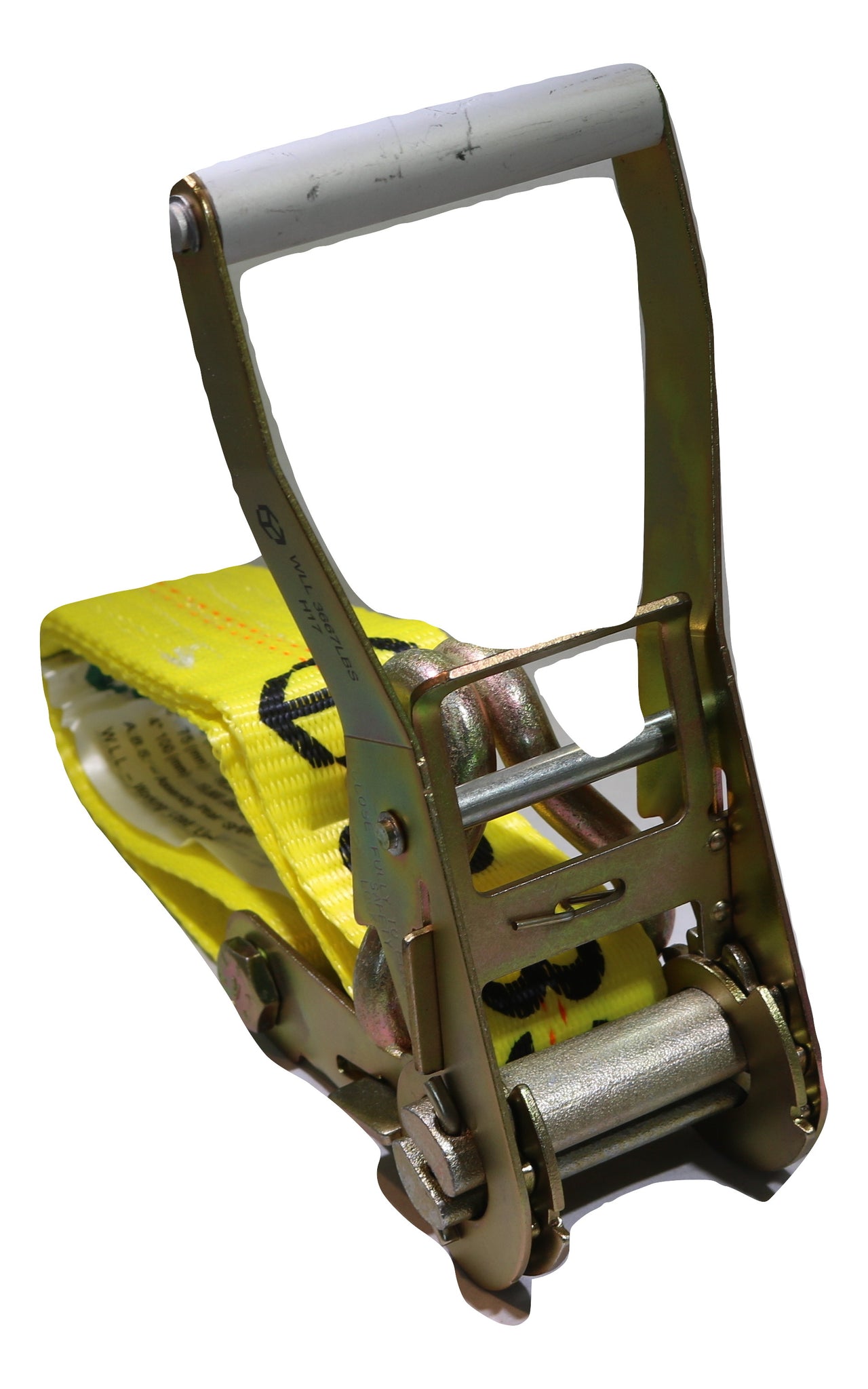

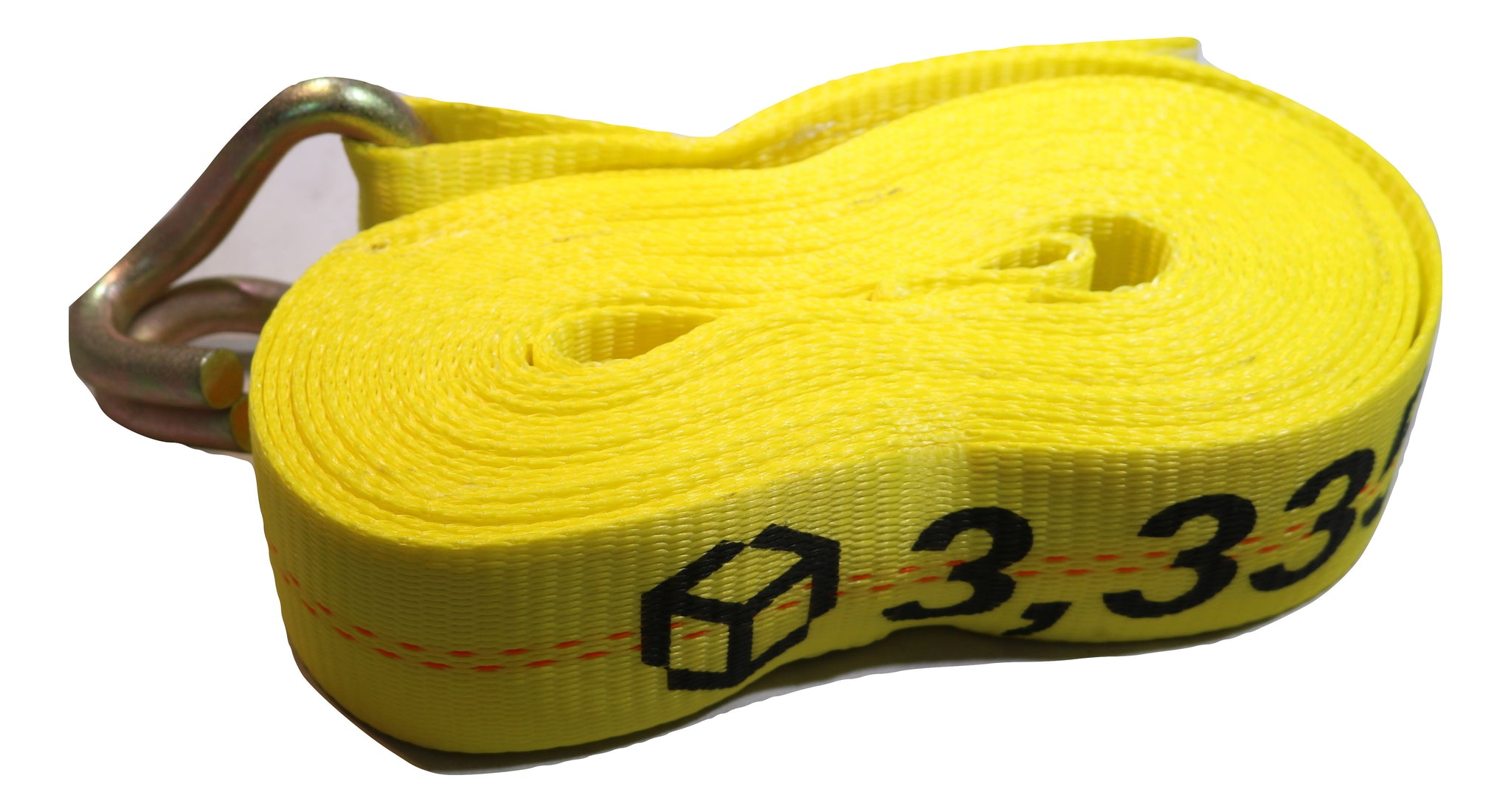

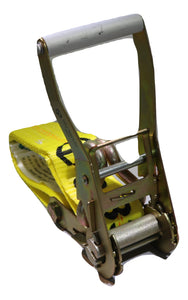

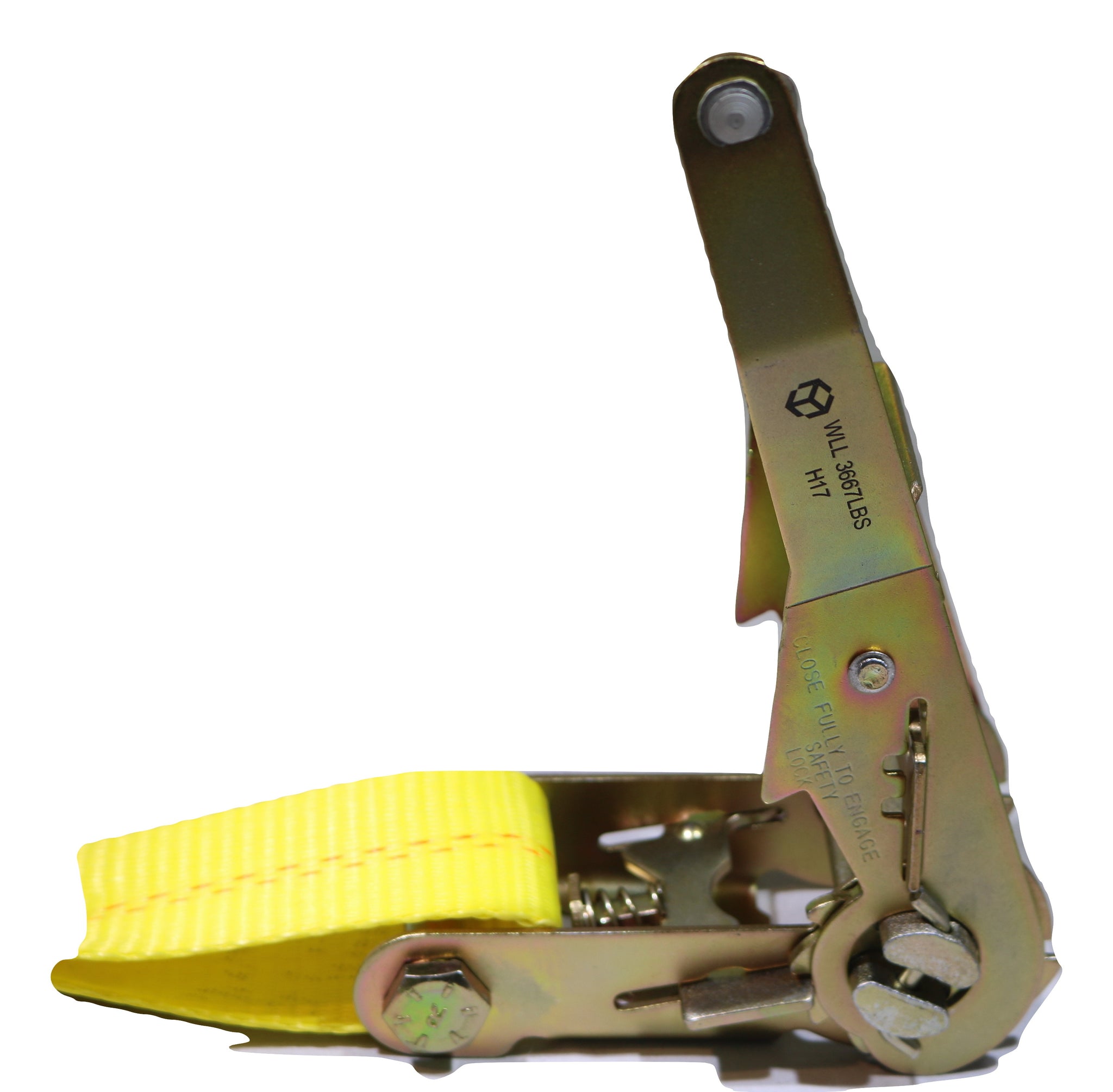

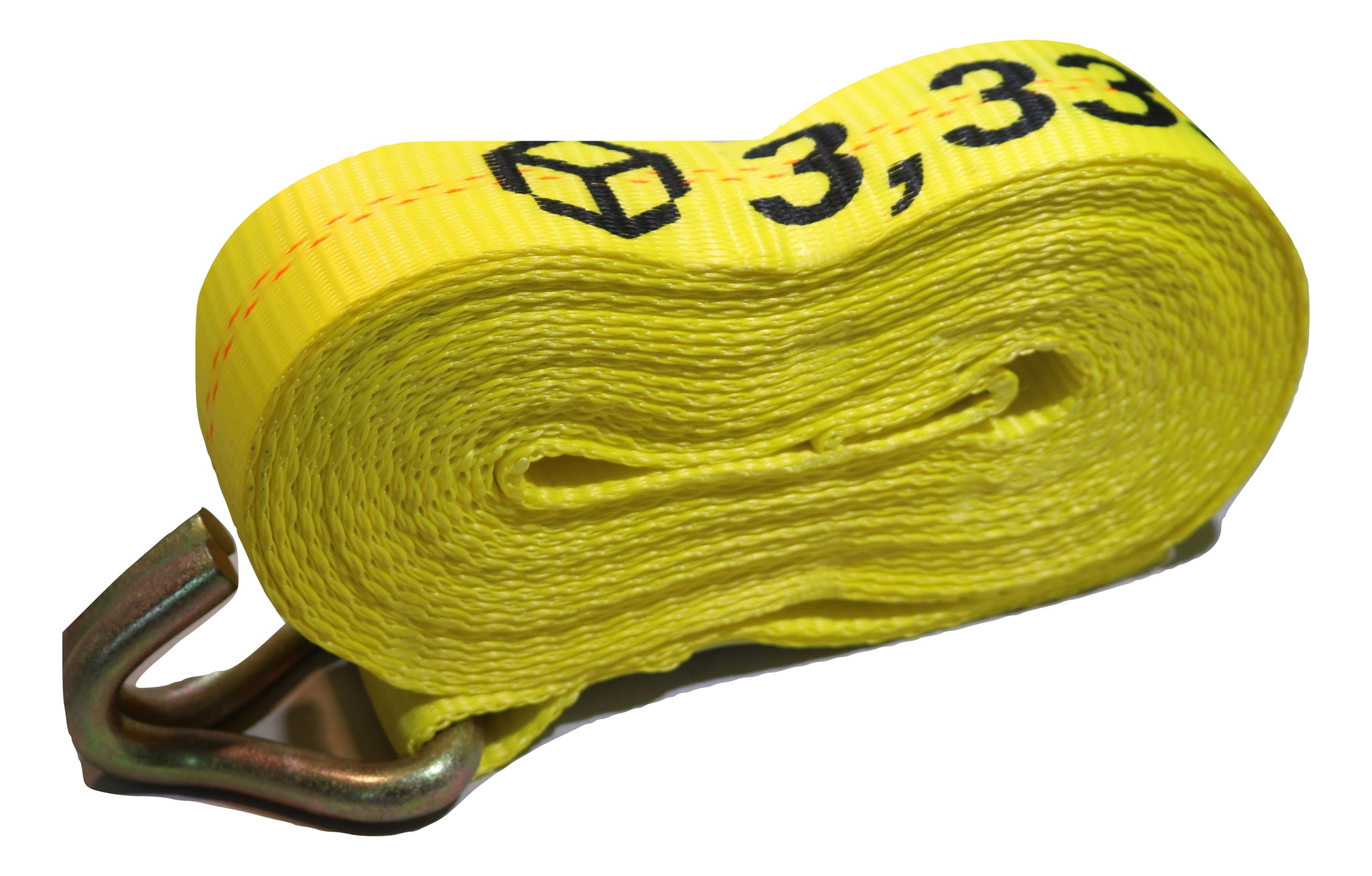

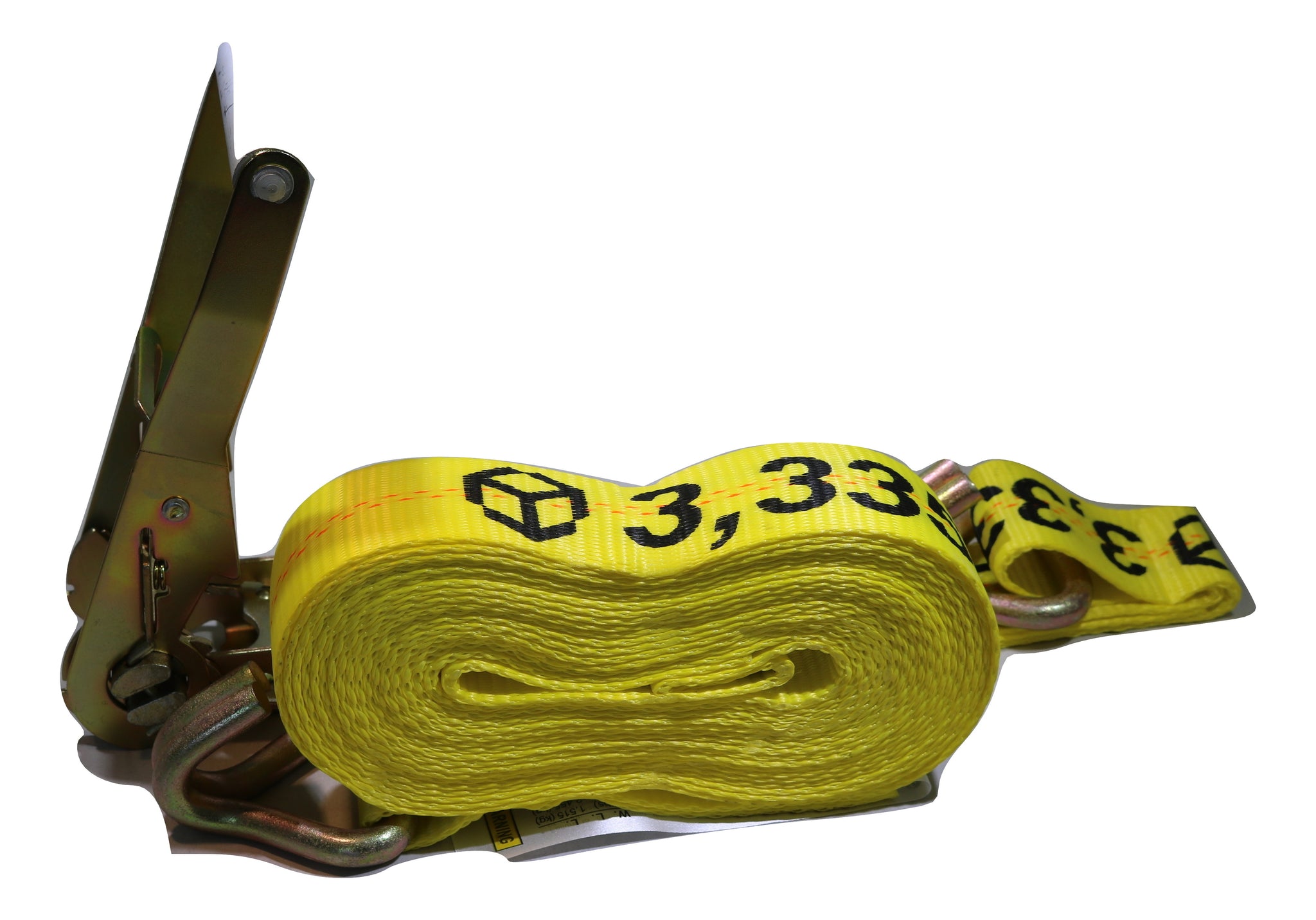

- 2" X 27 Ft. Ratchet With Wire Hooks
- 2 Ft. Ratchet with Wire Hook; 25 Ft. Adjustable with Wire Hook
- 3:1 Design Factor
- Polyester Webbing woven with Low Stretch, High Strength Ratio
- Custom Lengths & Colors for Ratcheting Tie Downs are Available

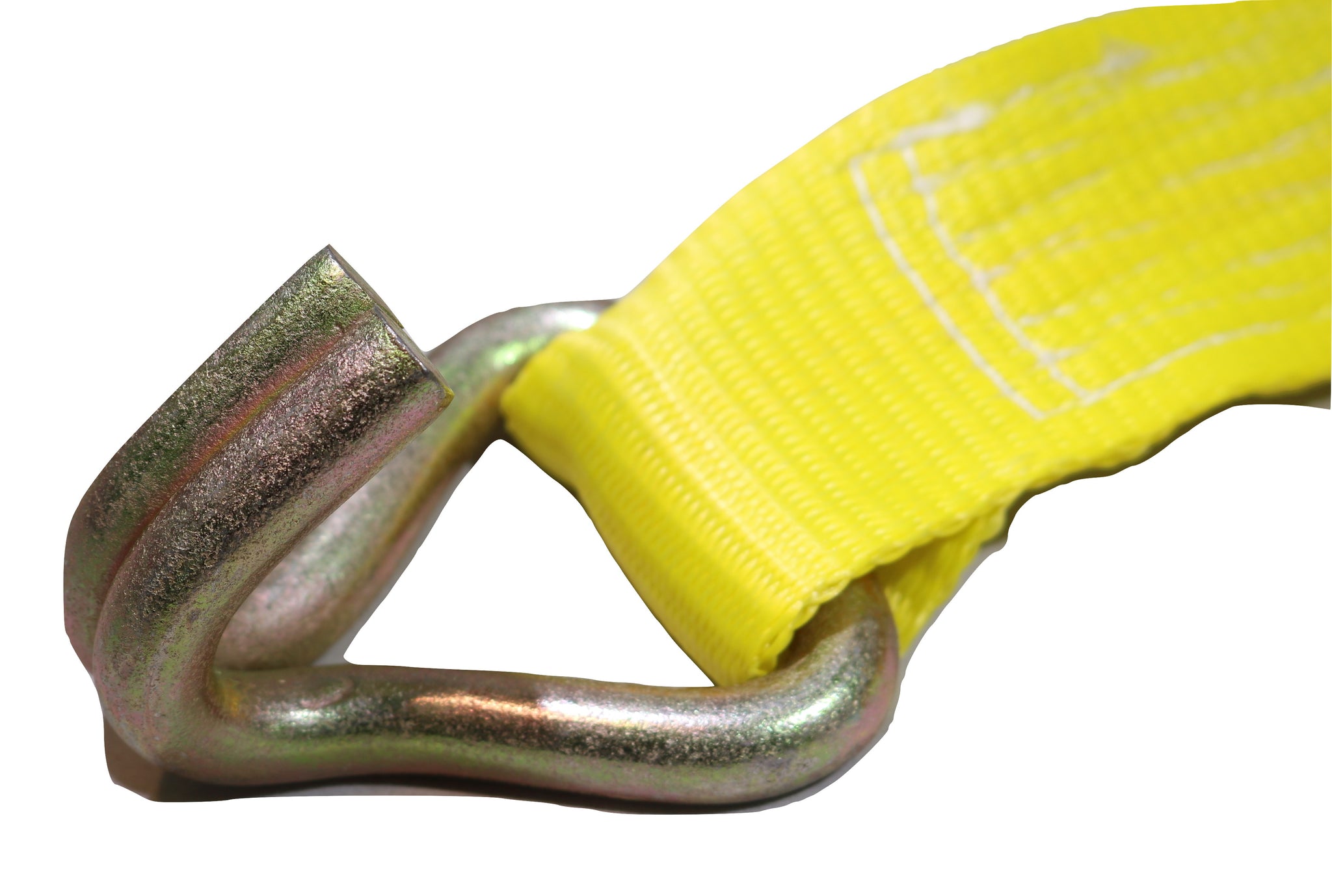

- Wire Hook or 'Finger Hook' Zinc Plated for Rust Inhibiting Finish
- Wire Hook or 'Finger Hook' Optimized to Prevent Web Wear
- Loose Ends are Heat Seared to Prevent Fraying
- Edge protection must be used whenever a tiedown would be subject to abrasion or cutting at the point where it touches an article of cargo. The edge protection must resist abrasion, cutting and crushing.
- Custom Box Quantity Quotes Available On Request: Sales@TidalHardware.com
- MPN: R27W
- BOX QUANTITY: 10
Strength
-
Working Load Limit: 3,335 lbs / 1,512.79 kgs - Fabricated Assemblies Confirmed by Testing
- Break Strength: 10,000 lbs / 4535.924 kgs
Working load limit - WLL is dependent upon the product being properly paired with similarly or higher rated components that are in turn properly fabricated into rated assemblies confirmed by testing
Technical Drawing
Weight
-
Single Item Weight: 5.25 lbs / 2.55 kgs
-
Box Weight: 56.2 lbs / 25.49 kgs
