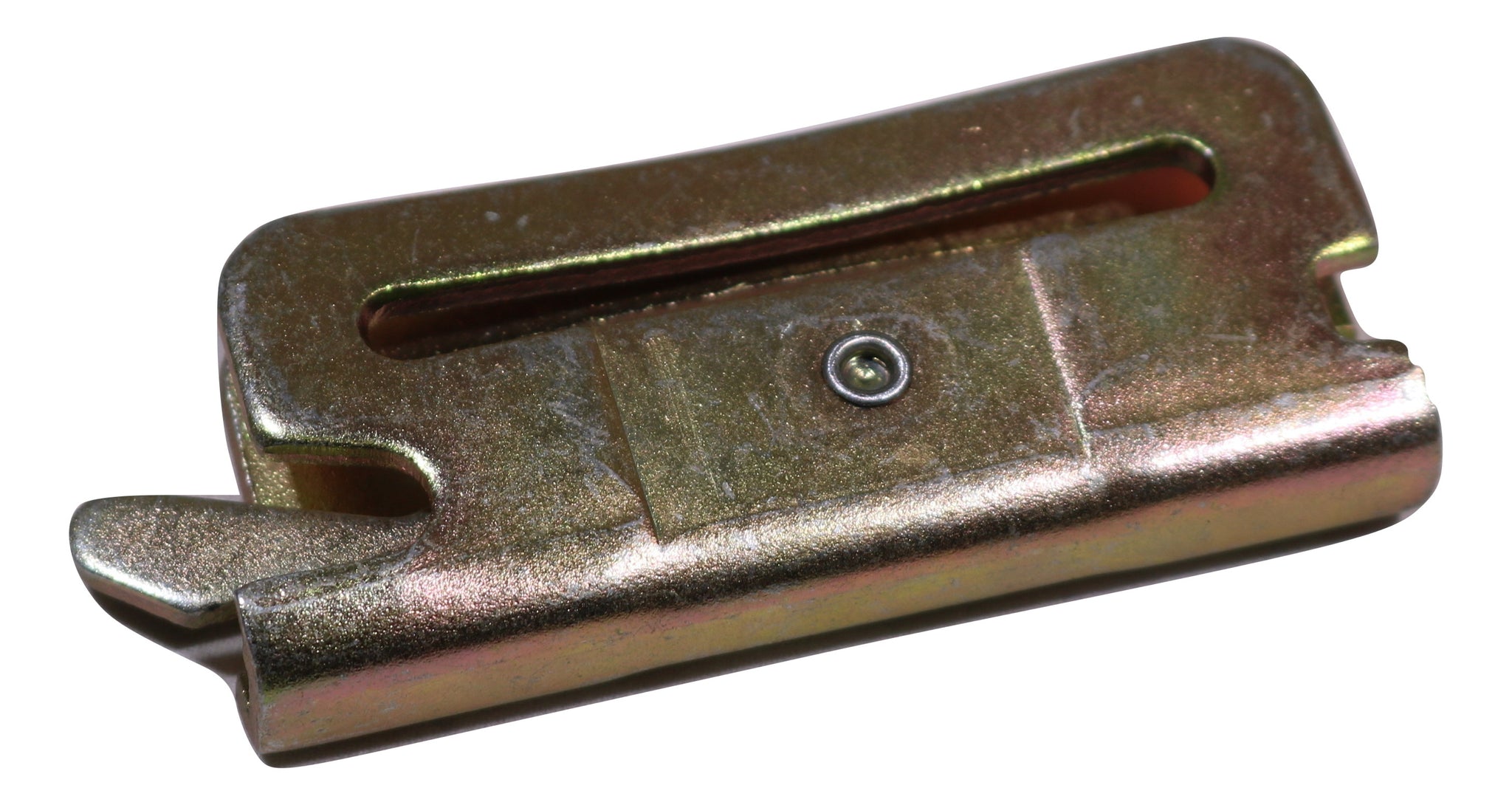

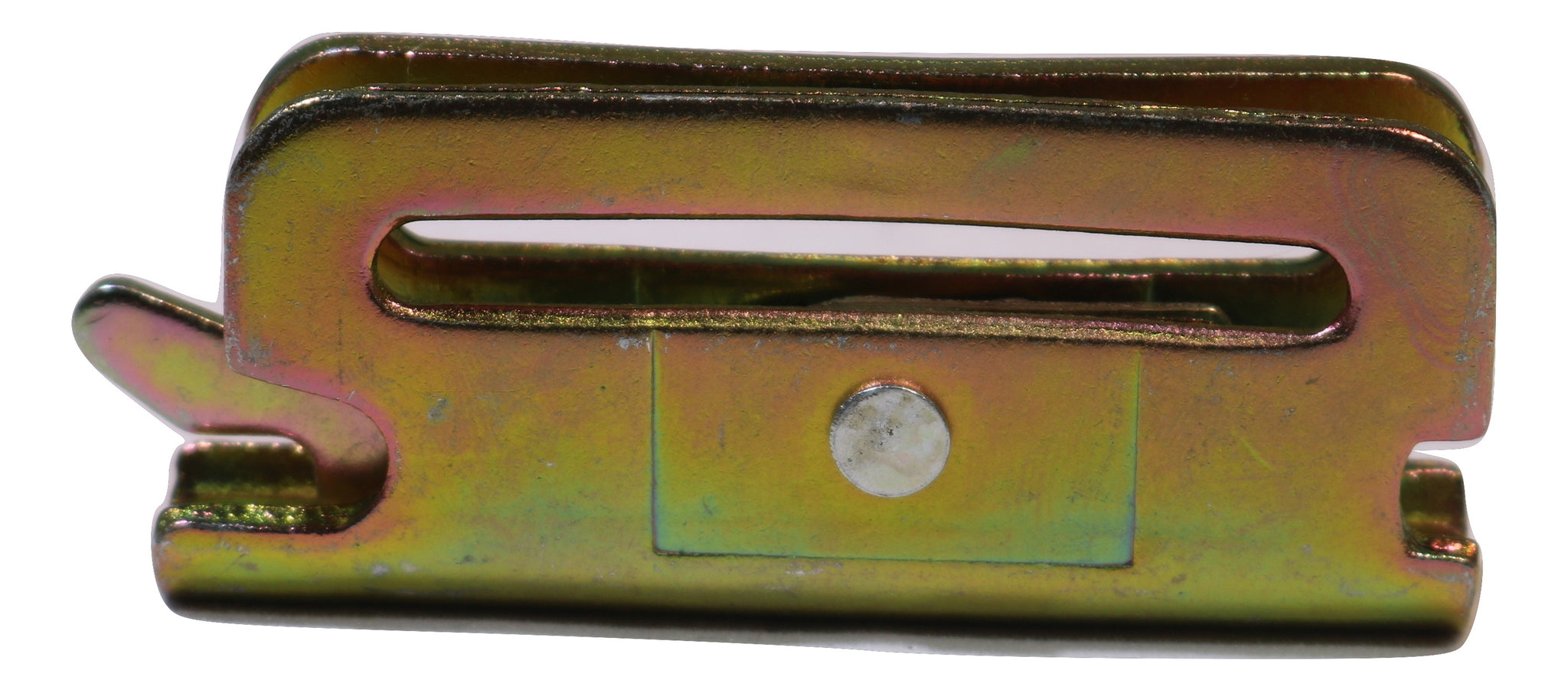

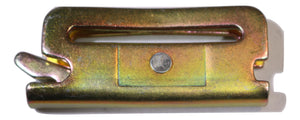

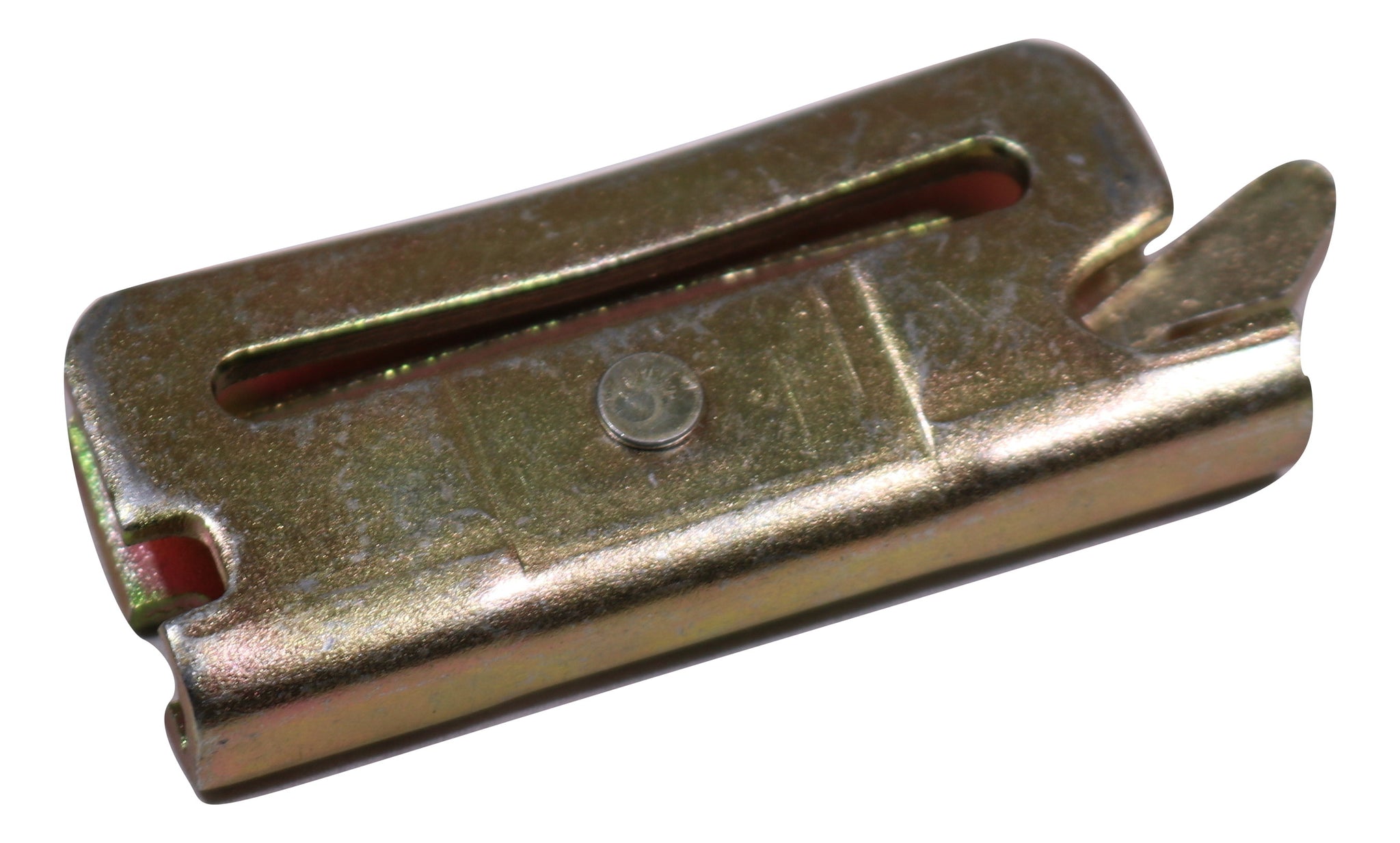

Series E-Track or A-Track One-Piece Spring Fitting - Heavy Duty

Regular price $0.77 Sale

Description

Thumb Actuated Part Fits into Logistic Track Slots for Positive Lock
Trigger Able to be Operated while Wearing Gloves
Used with Webbing or Strapping for Effective Load Securement
Slot Edges Smoothed to Promote an Ideal Contact Point for Webbing or Strapping
Part's Surface Area in Contact with the Track is Maximized to Allow the Strongest Connection Available
On floor systems, trigger should point away from object being secured
Custom Box Quantity Quotes Available On Request: Sales@TidalHardware.com
MPN: SE
BOX QUANTITY: 100

Strength

Breaking Strength: 4,500 lb / 2,041.16 kgs
Working Load Limit: 1,500 lb / 680.4 kgs - Fabricated Assemblies Confirmed by Testing

Working load limit - WLL is dependent upon the product being properly paired with similarly or higher rated components that are in turn properly fabricated into rated assemblies confirmed by testing

Technical Drawing

Technical Drawing PDF

Weight

Single Item Weight: .53 lb / .24 kgs
Box Weight: 53.30 lb / 24.18 kgs
