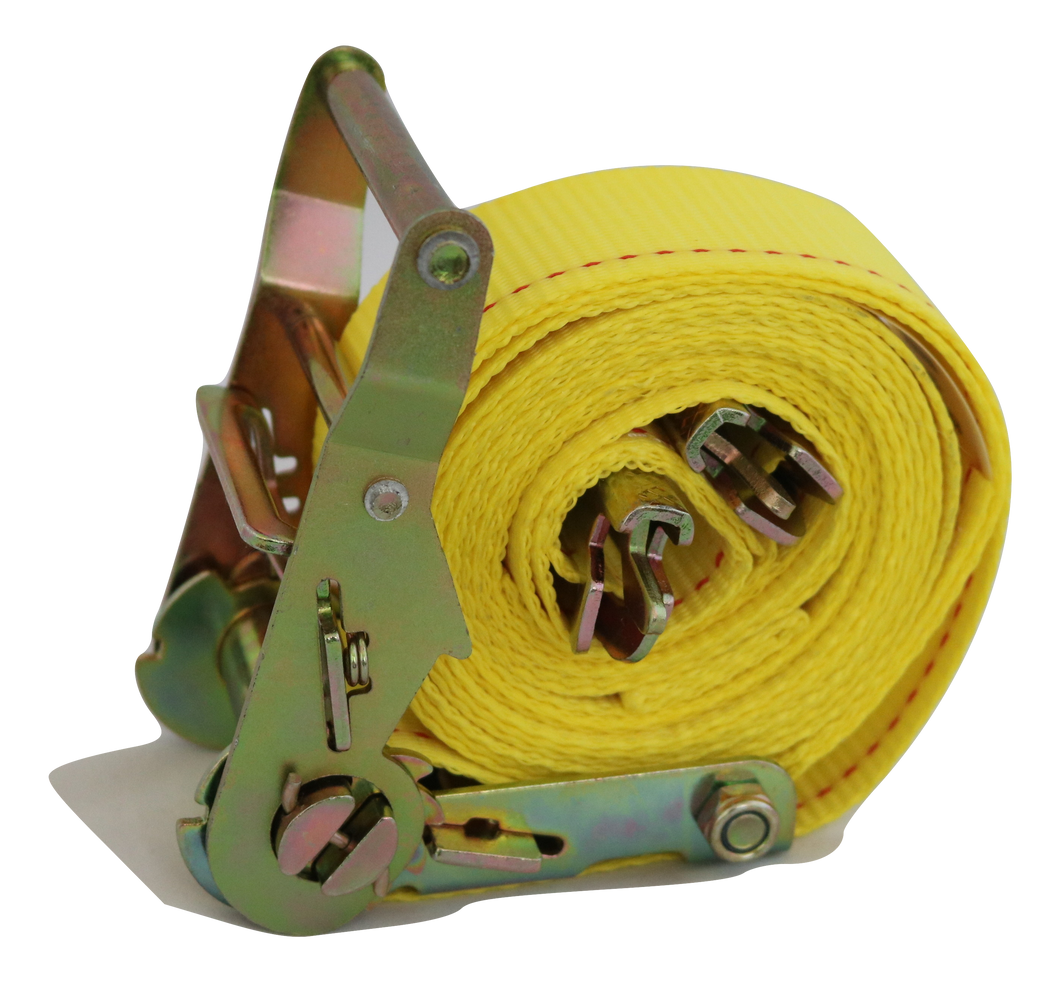

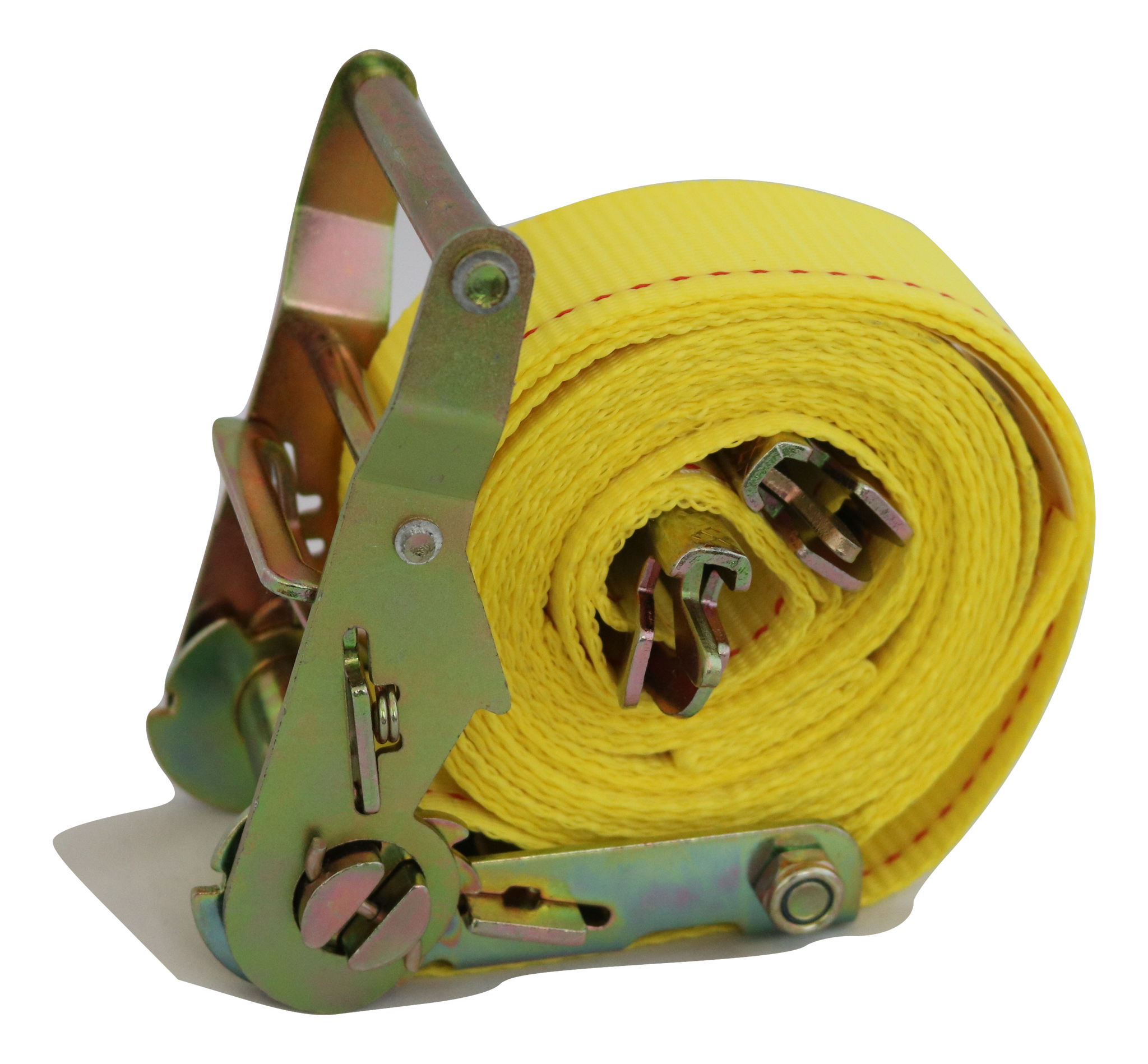

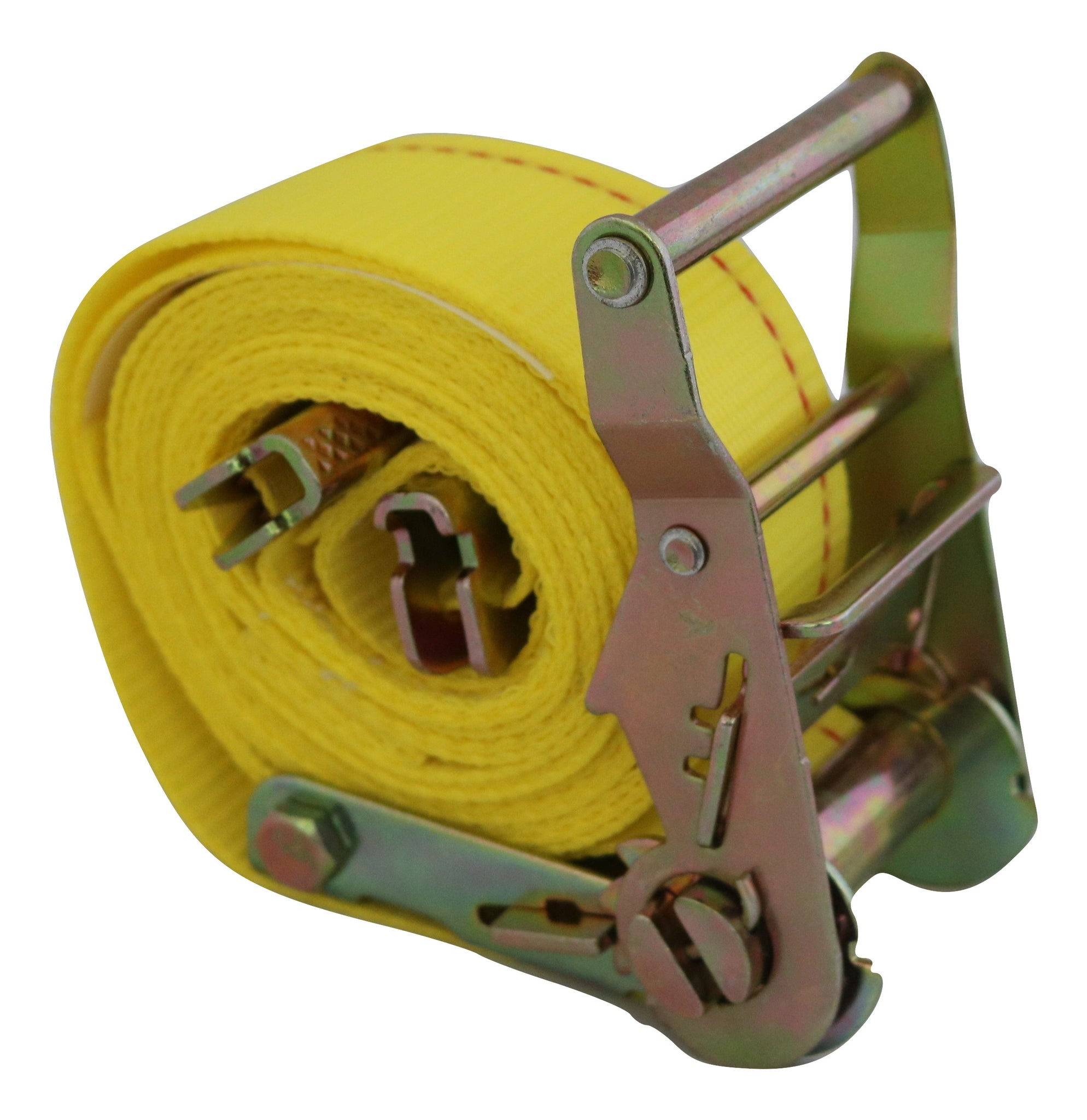

2" x 12 Ft. Logistic Ratchet Strap w/Spring E/A Fitting - YELLOW

Description

• Interior Van Ratchet Strap

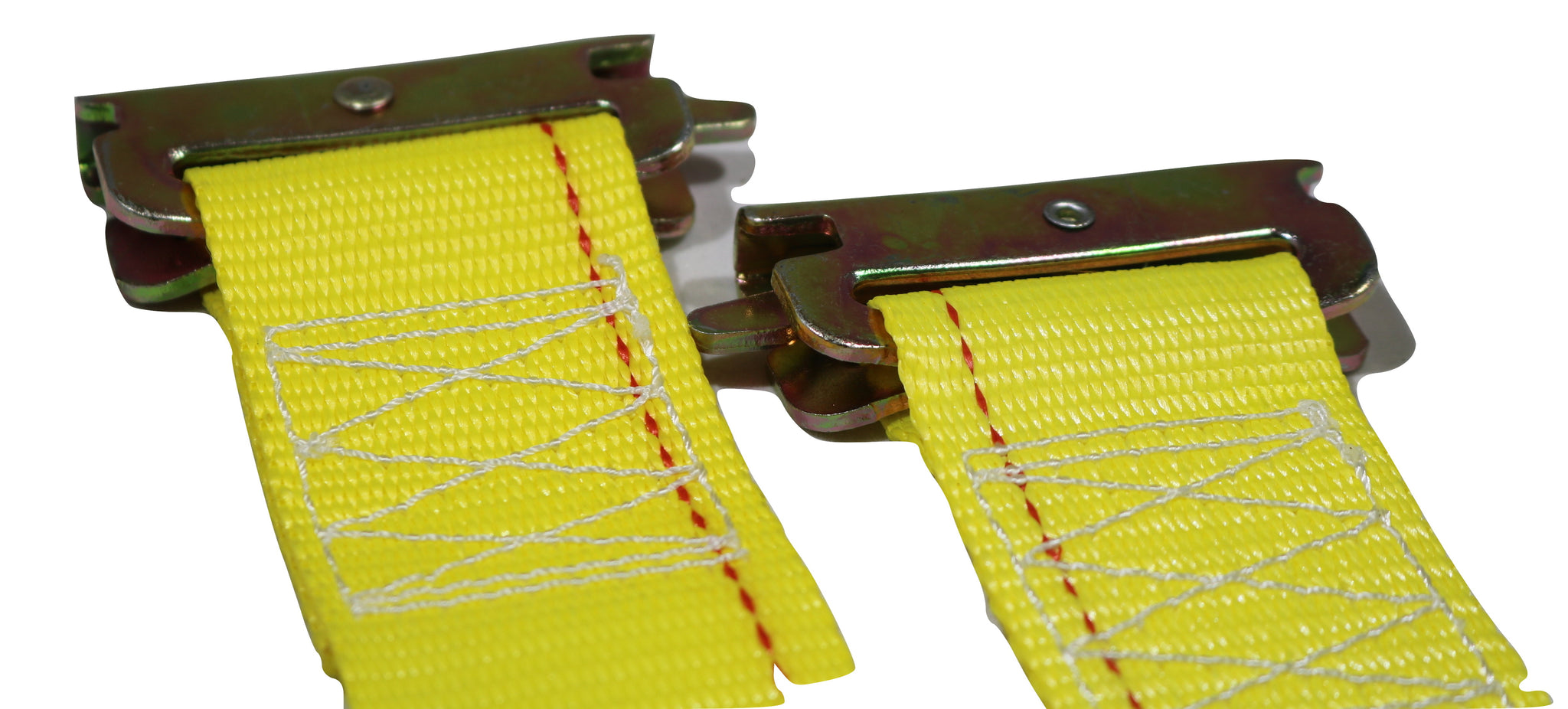

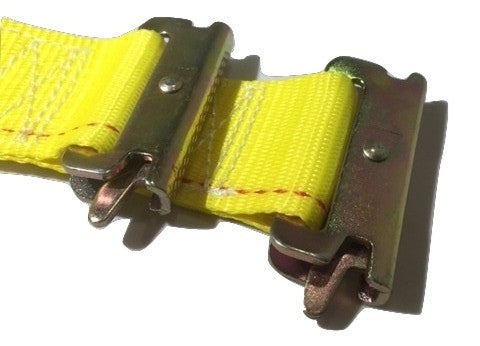

• 1/pc Spring "E/A" Fittings

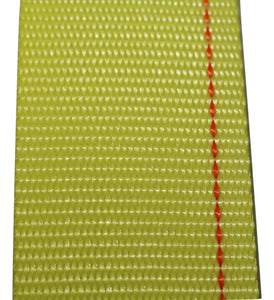

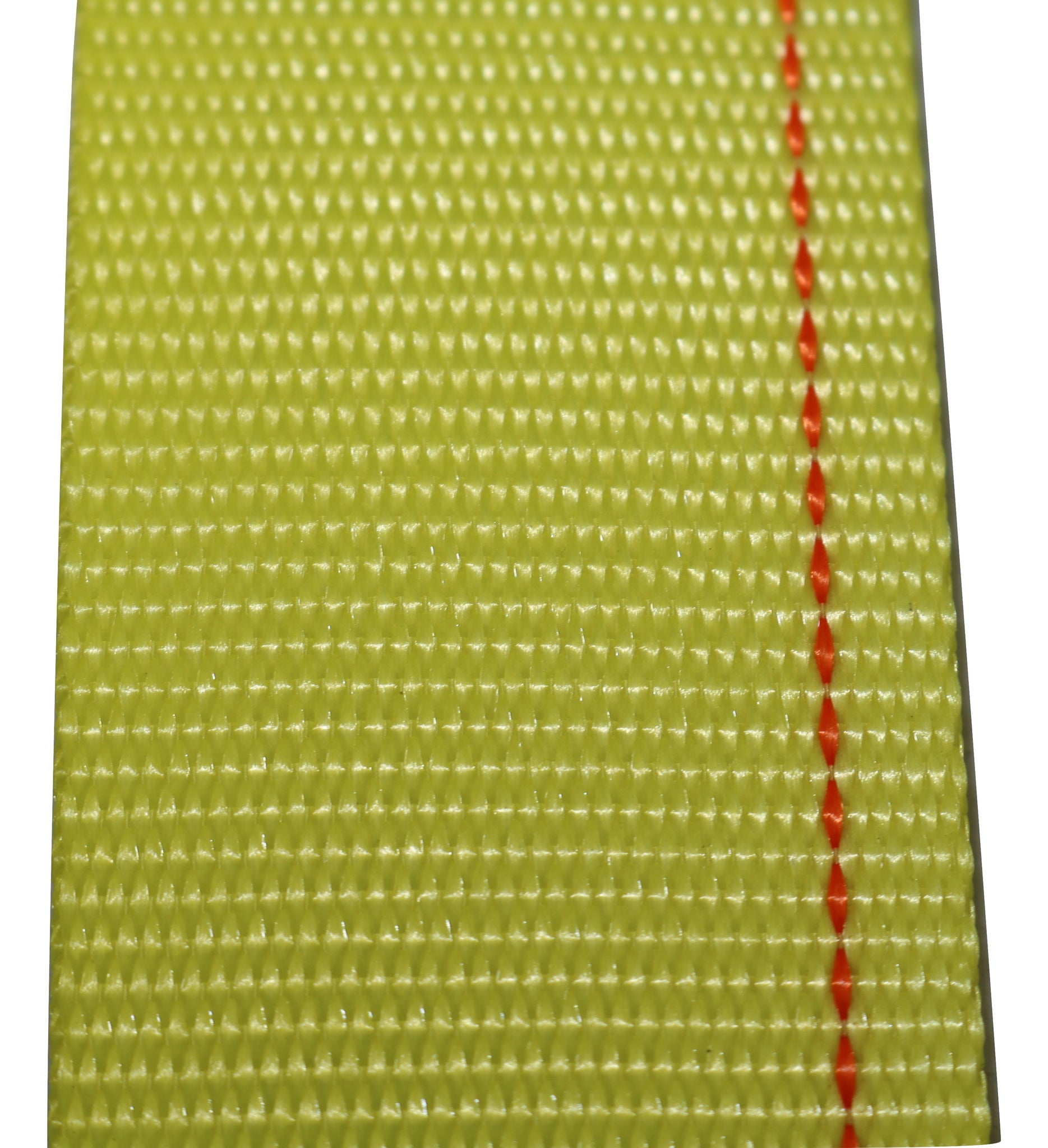

• Polyester Webbing
• Tagged per WSTDA T-5
• 4 foot fixed end 8 Ft adjustable end sewn captive to the ratchet
• Wide Handle Ratchets Allow Easy Operation While Wearing Gloves
• End Fittings Optimized for E-Track & A-Track Common to Freight Vans
• Industry Standard Calls for 16 Ft Straps to be Grey; Yellow Straps are 12 Ft; Blue Straps are 20 Ft
• Adjustable Ends are Sewn Captivated to Prevent Separation
• End Fittings Optimized for E-Track & A-Track Common to Freight Vans
• Adjustable (Long) Ends are Sewn Captivated to Prevent Separation in Van Trailers
• Wide Handle Ratchets Allow Easy Operation While Wearing Gloves
• 2” Ratchet and Cam Buckle Straps for Track Securements: Fixed Ends come 4 Ft. as Industry Standard but can be Sewn Any Length By Request
• Custom Box Quantity Quotes Available On Request: Sales@TidalHardware.com
• MPN: R12E
• BOX QUANTITY: 20

Strength

• Breaking Strength: 4,500 lb / 2041.17 kgs
• Working Load Limit: 1,500 lb / 680.39 kgs - Fabricated Assemblies Confirmed by Testing

Working load limit - WLL is dependent upon the product being properly paired with similarly  or higher rated components that are in turn properly fabricated into rated assemblies confirmed by testing

Technical Drawing

• Technical Drawing PDF

Weight

• Single Item Weight: 2.08 lb / .94 kgs
• Box Weight:  41.5 lb / 18.82kgs
