2" x 16 Ft. Logistic Ratchet Strap w/ Spring E/A Fitting - GREY

Regular price $7.95 Sale

Description

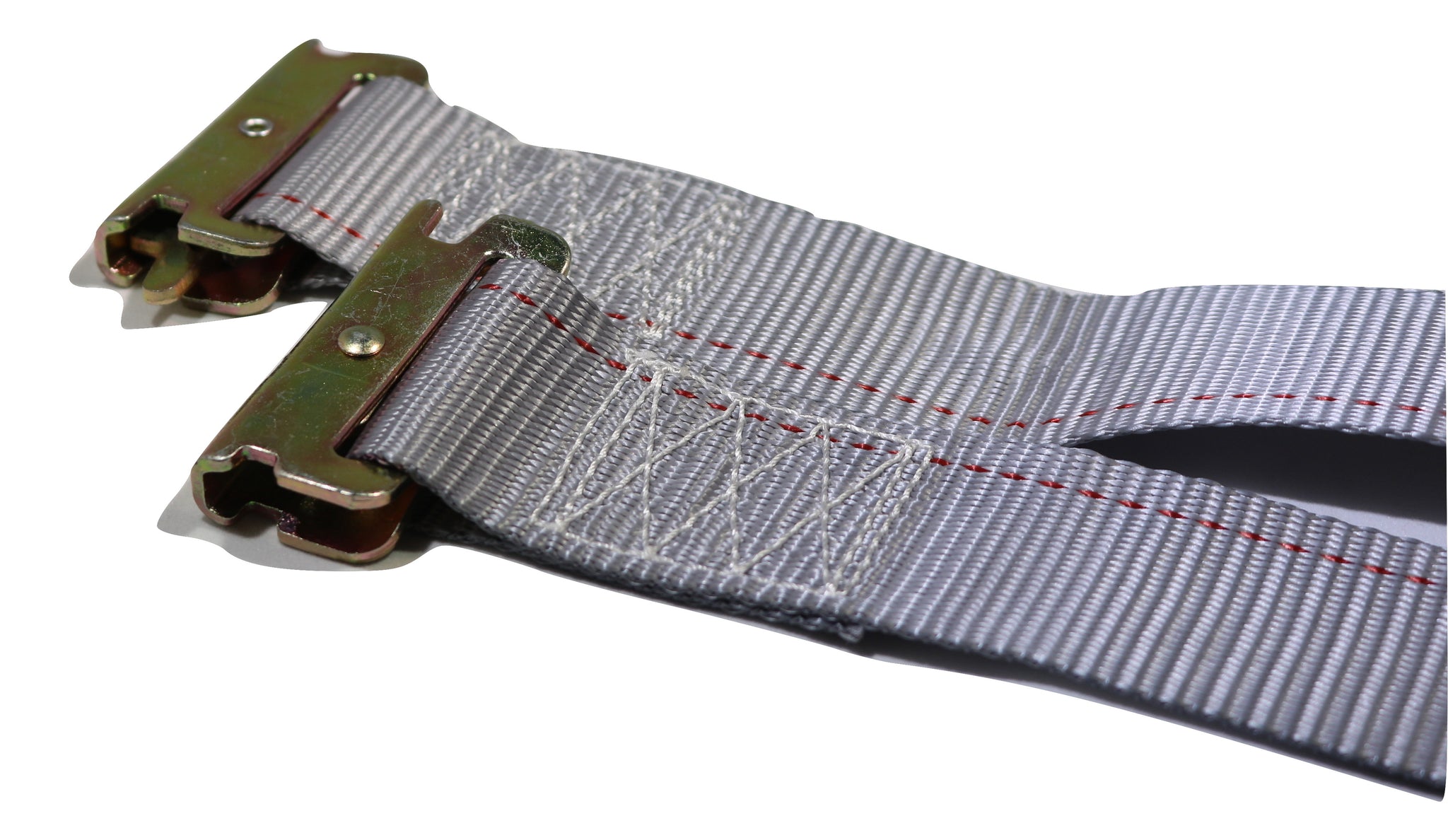

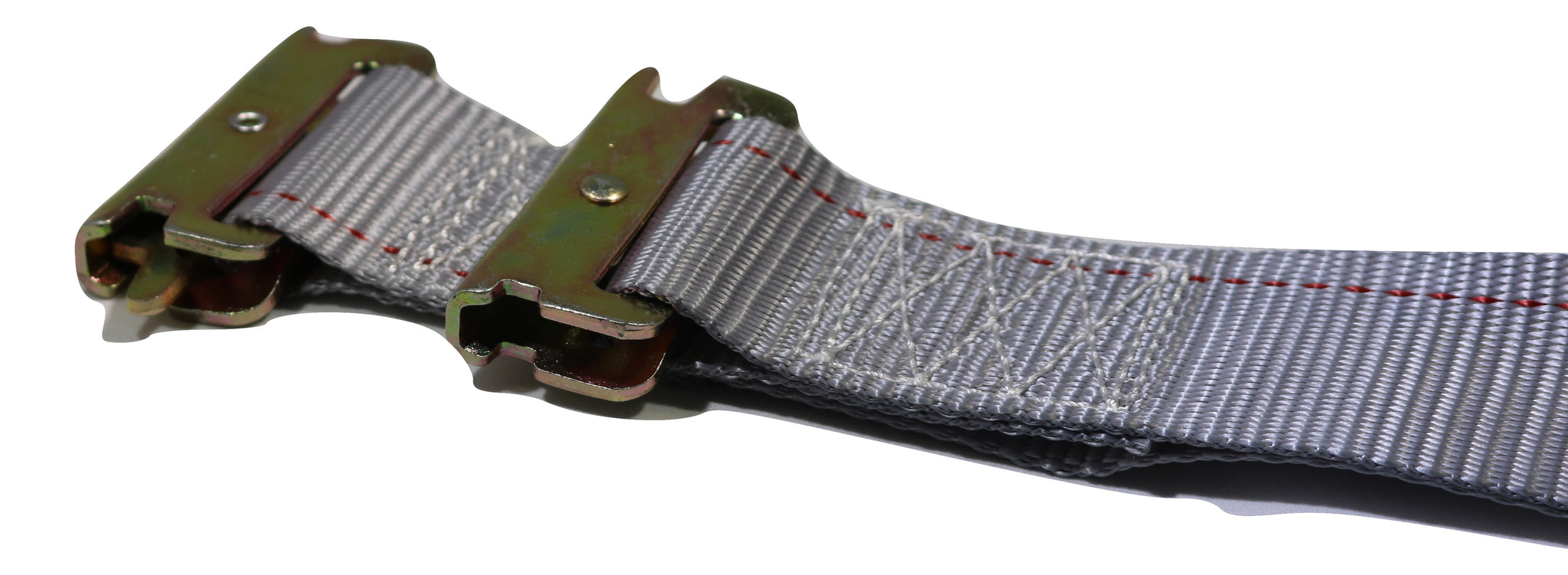

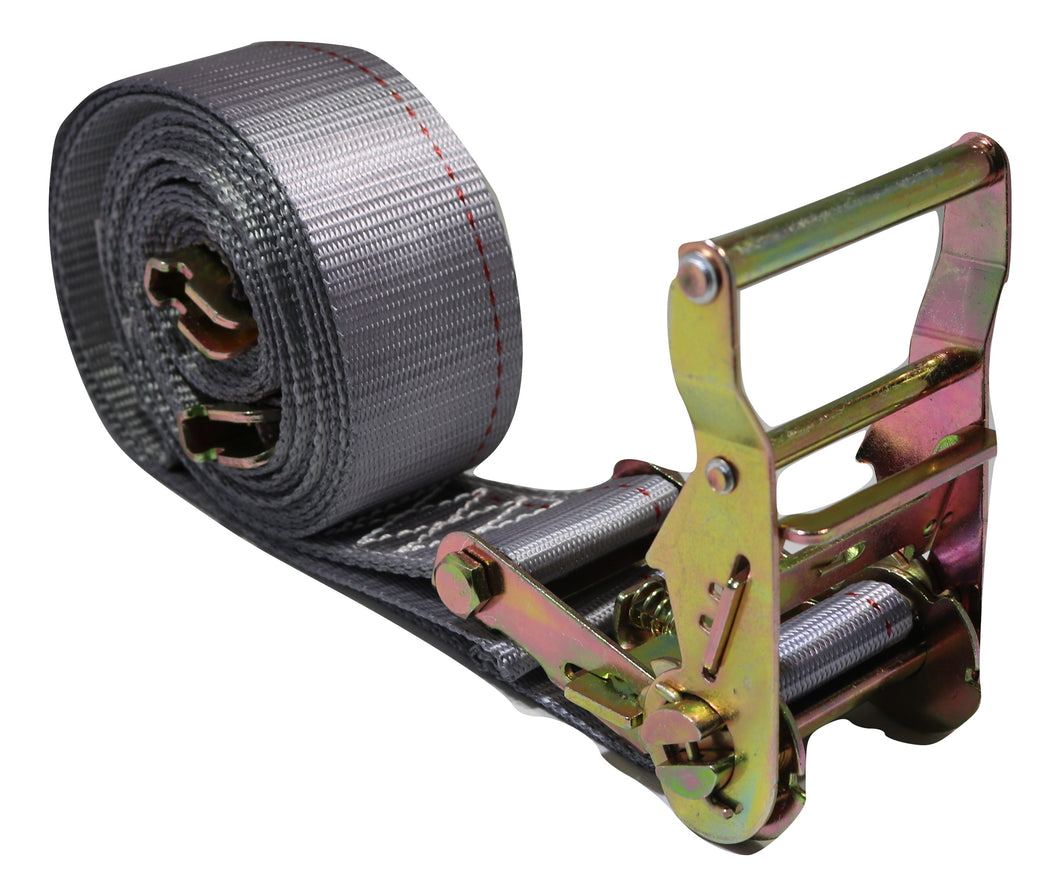

2" x 16' Interior Van Ratchet Strap with 1/pc Spring "E/A" Fittings
Polyester Webbing
Tagged per WSTDA T-5
4 foot fixed end 12 Ft adjustable end sewn captive to the ratchet
Wide Handle Ratchets Allow Easy Operation While Wearing Gloves
End Fittings Optimized for E-Track & A-Track Common to Freight Vans
Industry Standard Calls for 16 Ft Straps to be Grey; Yellow Straps are 12 Ft; Blue Straps are 20 Ft
Adjustable Ends are Sewn Captivated to Prevent Separation
End Fittings Optimized for E-Track & A-Track Common to Freight Vans
Adjustable (Long) Ends are Sewn Captivated to Prevent Separation in Van Trailers
Wide Handle Ratchets Allow Easy Operation While Wearing Gloves
2” Ratchet and Cam Buckle Straps for Track Securements: Fixed Ends come 4 Ft. as Industry Standard but can be Sewn Any Length By Request
Custom Box Quantity Quotes Available On Request: Sales@TidalHardware.com
MPN: R16E
BOX QUANTITY: 20

Strength

Breaking Strength: 4,500 lb / 2041.17 kgs
Working Load Limit: 1,500 lb / 680.39 kgs - Fabricated Assemblies Confirmed by Testing

Working load limit - WLL is dependent upon the product being properly paired with similarly or higher rated components that are in turn properly fabricated into rated assemblies confirmed by testing

Technical Drawing

Technical Drawing PDF

Weight

Single Item Weight: 2.35 lbs / 1.07 kgs
Box Weight: 47 lbs / 21.32kgs
