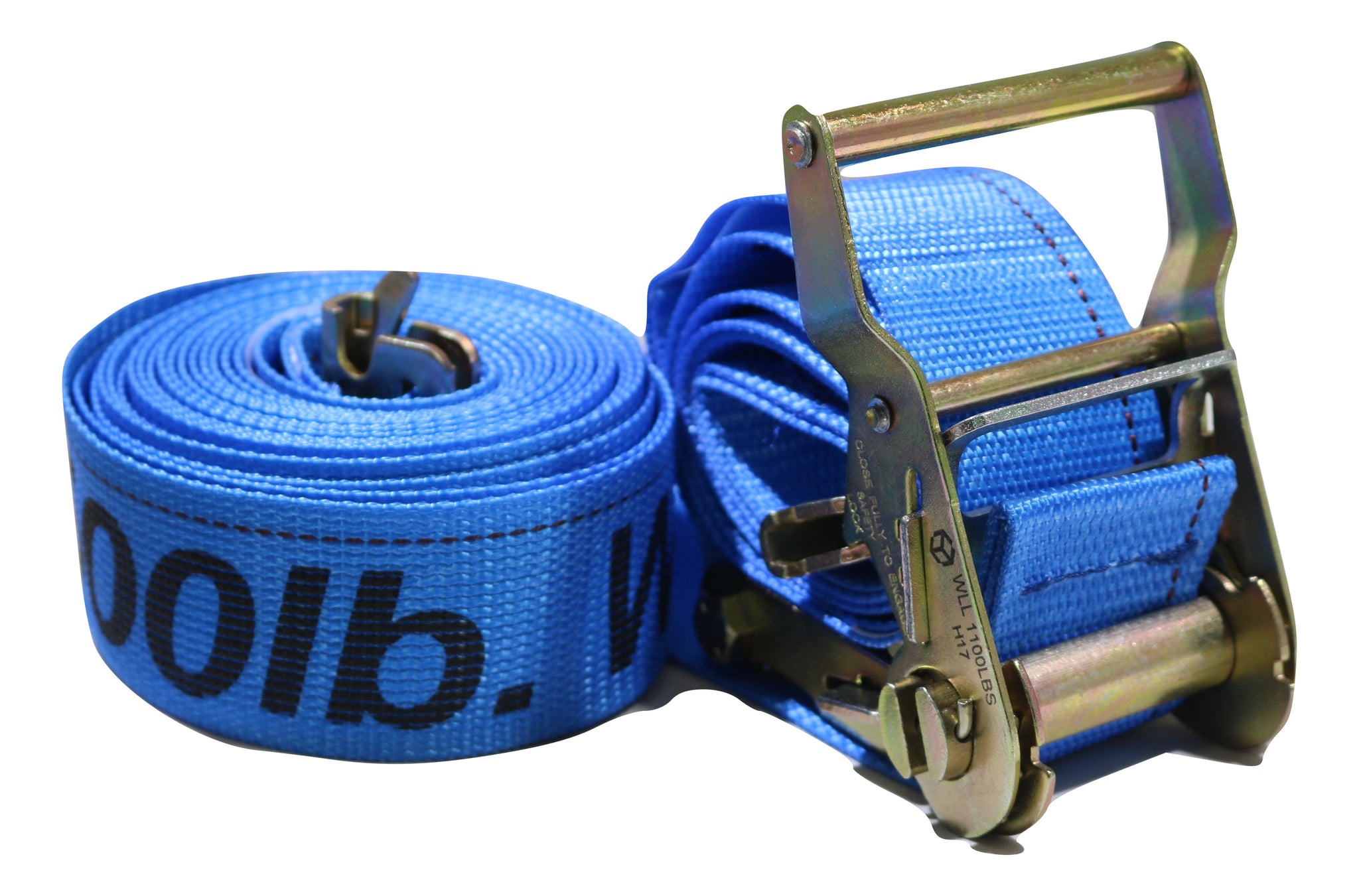

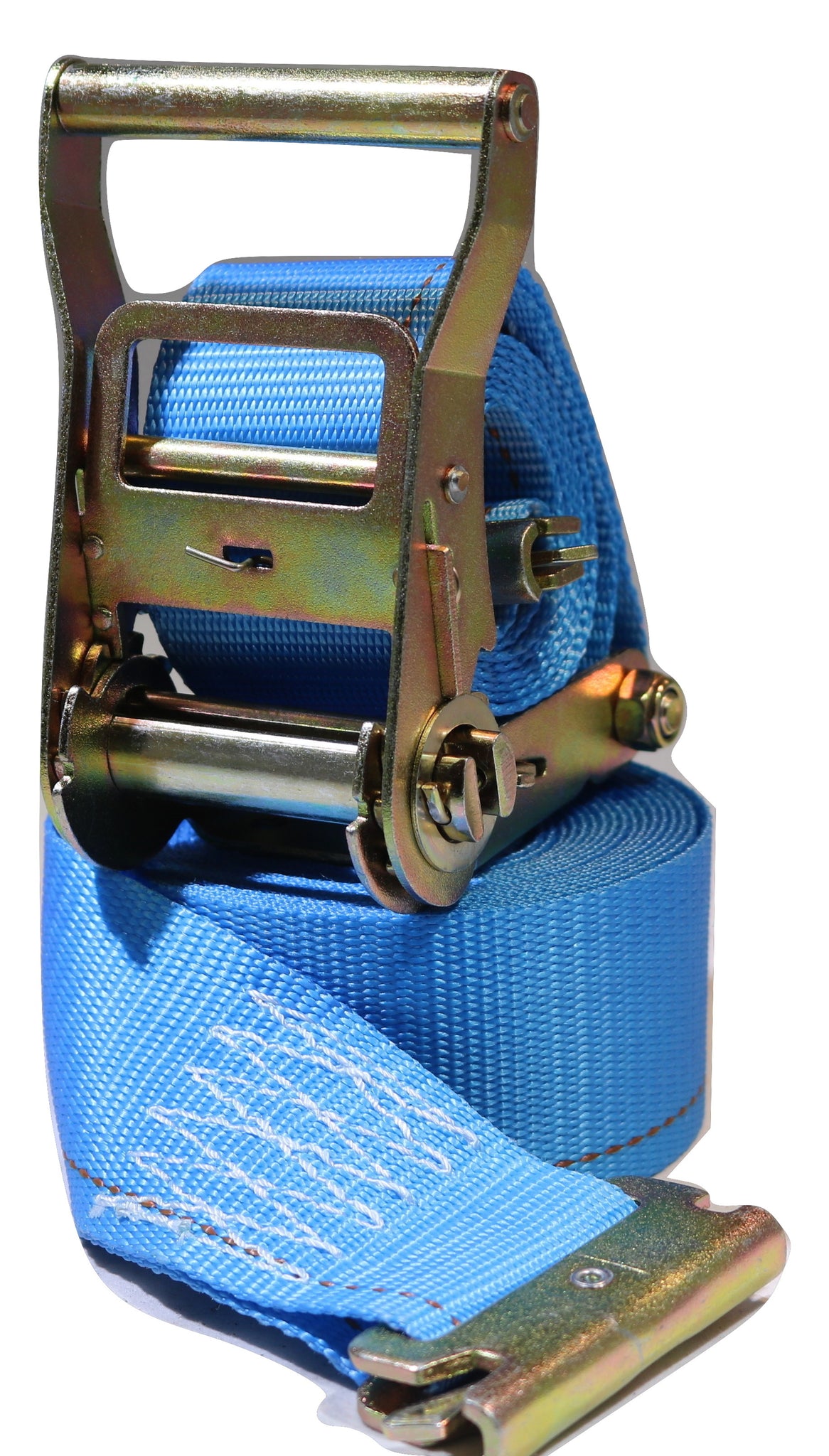

2" x 20 Ft. Logistic Ratchet Strap w/E Fitting - BLUE

Description

• 2" x 20' Interior Van Ratchet Strap with 1/pc Spring "E/A" Fittings

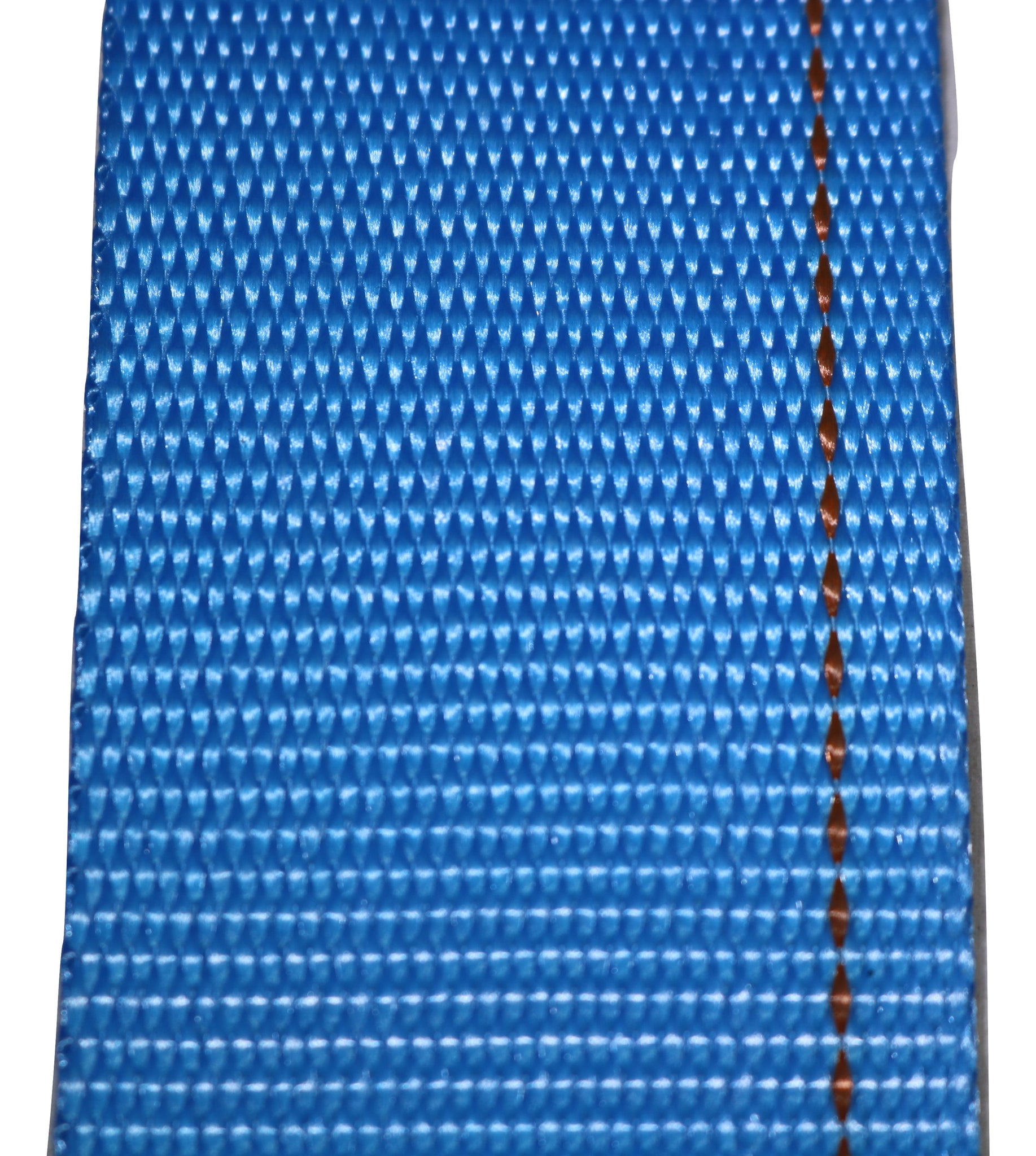

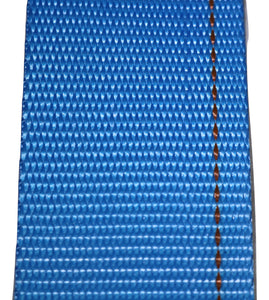

• Polyester Webbing
• Tagged per WSTDA T-5
• 4 foot fixed end 16 Ft adjustable end sewn captive to the ratchet

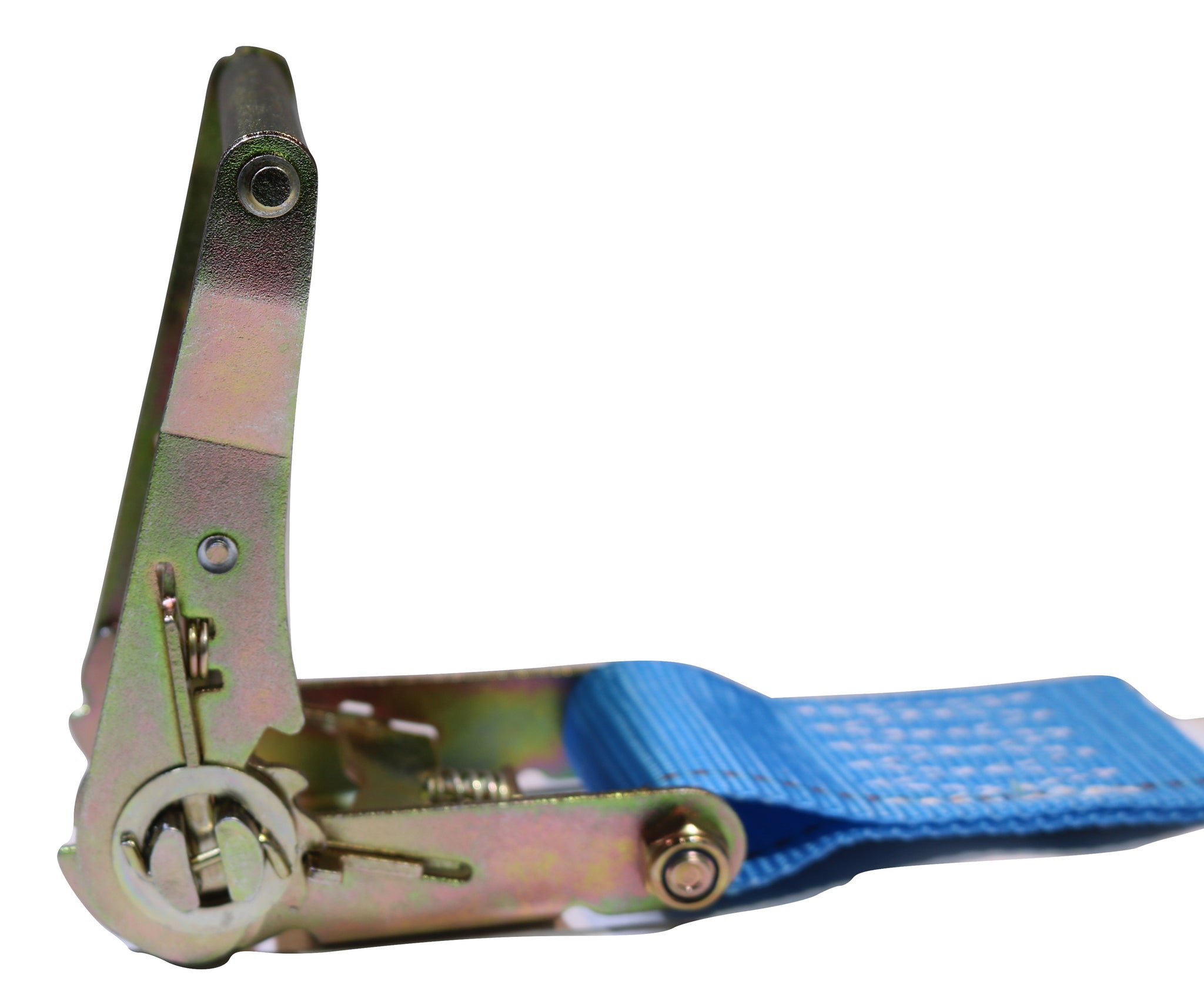

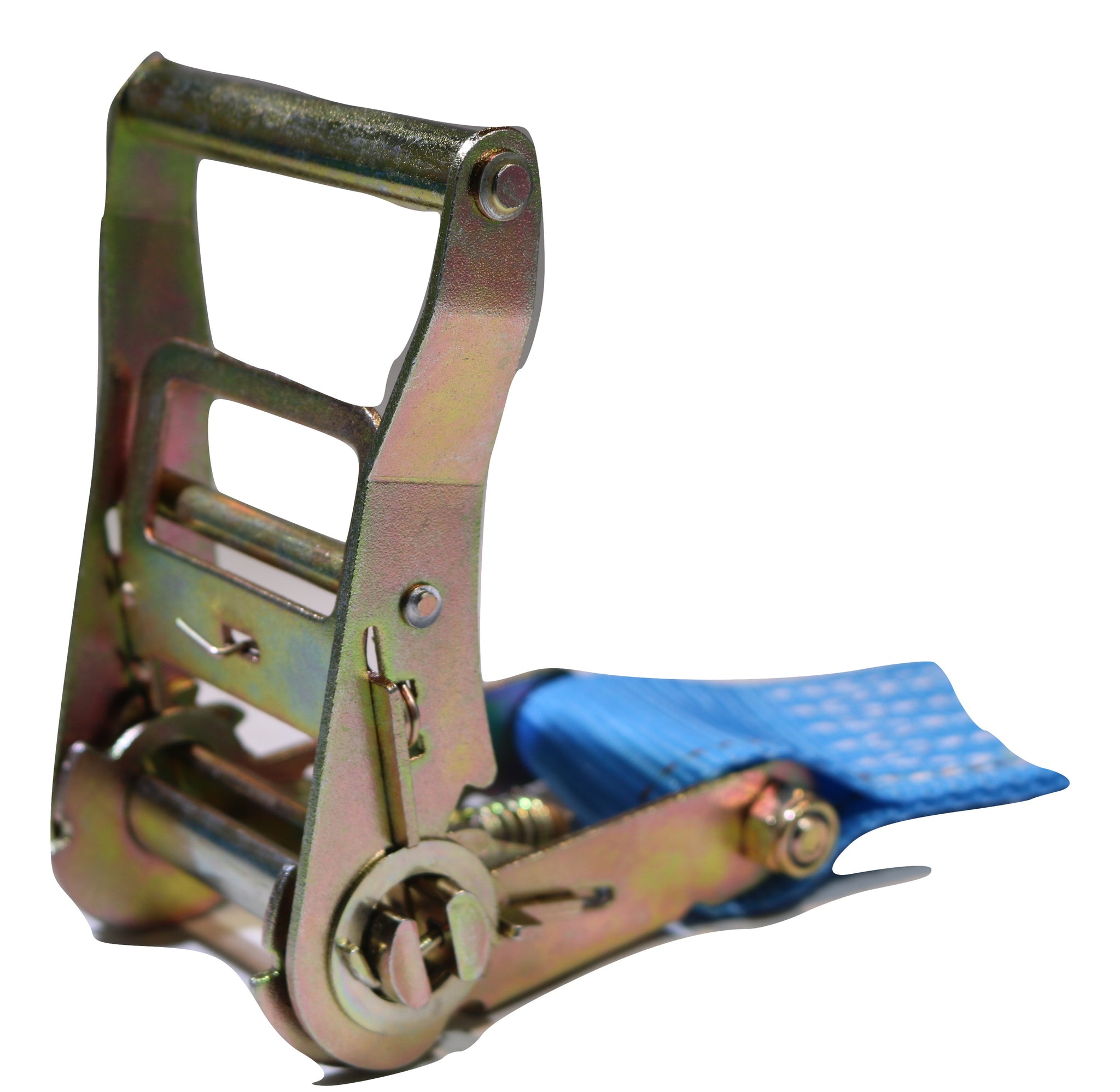

• Wide Handle Ratchets Allow Easy Operation While Wearing Gloves

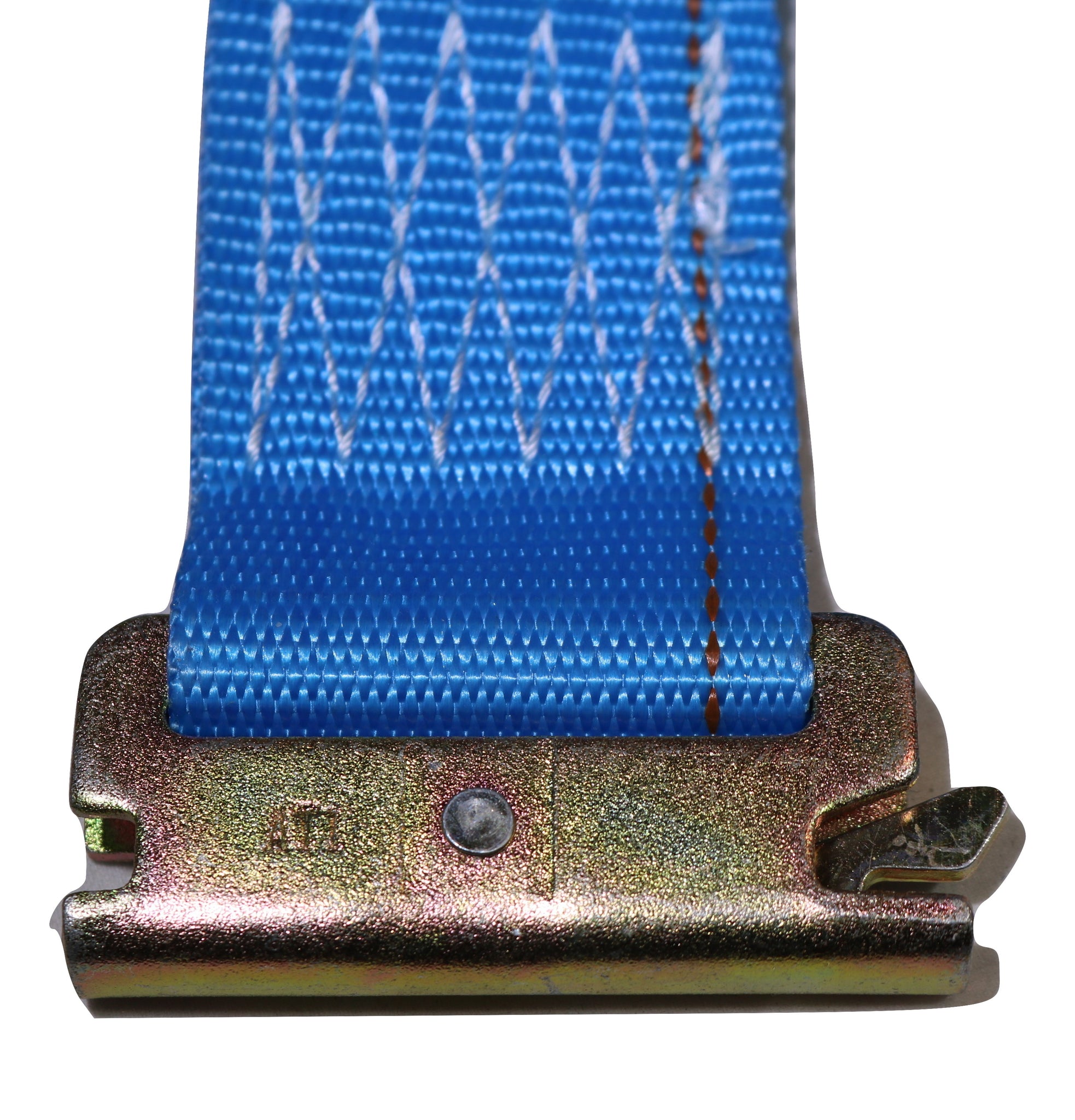

• End Fittings Optimized for E-Track & A-Track Common to Freight Vans
• Industry Standard Calls for 16 Ft Straps to be Grey; Yellow Straps are 12 Ft; Blue Straps are 20 Ft
• Adjustable Ends are Sewn Captivated to Prevent Separation
• End Fittings Optimized for E-Track & A-Track Common to Freight Vans
• Adjustable (Long) Ends are Sewn Captivated to Prevent Separation in Van Trailers
• Wide Handle Ratchets Allow Easy Operation While Wearing Gloves
• 2” Ratchet and Cam Buckle Straps for Track Securements: Fixed Ends come 4 Ft. as Industry Standard but can be Sewn Any Length By Request
• Custom Box Quantity Quotes Available On Request: Sales@TidalHardware.com
• MPN: R20E
• BOX QUANTITY: 20

Strength

• Breaking Strength: 4,500 lb / 2,041.17 kgs
• Working Load Limit: 1,500 lb / 680.39 kgs - Fabricated Assemblies Confirmed by Testing

Working load limit - WLL is dependent upon the product being properly paired with similarly  or higher rated components that are in turn properly fabricated into rated assemblies confirmed by testing

Technical Drawing

• Technical Drawing PDF

Weight

• Single Item Weight: 2.56 lbs / 1.16 kgs
• Box Weight: 51.20 lbs / 23.22kgs
